MLウォール形状・寸法
|
| |
標準部寸法表

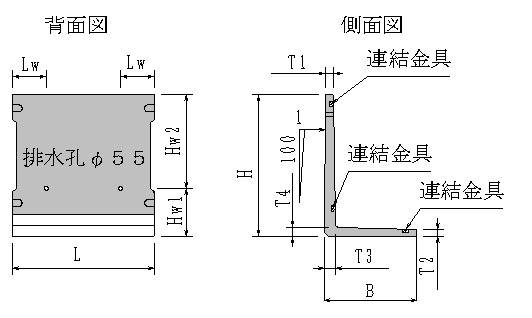

標準部 Ⅱ型、Ⅲ型/30°、Ⅲ型/25°形状図
|
|
|
|
|
a.Ⅱ型、Ⅲ型/30°
|
| 呼び名 |
H
(mm) |
B
(mm) |
L
(mm) |
T1
(mm) |
T2
(mm) |
T3
(mm) |
T4
(mm) |
HW1
(mm) |
HW2
(mm) |
LW
(mm) |
参考質量
(kg) |
| 750 |
750 |
550 |
2000 |
102.5 |
100.0 |
109 |
100 |
525 |
225 |
525 |
600 |
| 1000 |
1000 |
700 |
100.0 |
100.0 |
109 |
100 |
525 |
475 |
525 |
800 |
| 1250 |
1250 |
850 |
105.5 |
105.2 |
130 |
130 |
525 |
725 |
525 |
1140 |
| 1500 |
1500 |
1000 |
100.0 |
100.0 |
130 |
130 |
525 |
975 |
525 |
1340 |
| 1750 |
1750 |
1150 |
108.2 |
107.9 |
160 |
160 |
625 |
1125 |
475 |
1820 |
| 2000 |
2000 |
1300 |
100.0 |
100.0 |
160 |
160 |
625 |
1375 |
475 |
2020 |
| 2250 |
2250 |
1450 |
109.7 |
109.6 |
190 |
190 |
625 |
1625 |
475 |
2620 |
| 2500 |
2500 |
1600 |
100.0 |
100.0 |
190 |
190 |
625 |
1875 |
475 |
2820 |
| 2750 |
2750 |
1750 |
110.8 |
110.8 |
220 |
220 |
875 |
1875 |
475 |
3550 |
| 3000 |
3000 |
1900 |
100.0 |
100.0 |
220 |
220 |
875 |
2125 |
475 |
3750 |
|
|
↑
|
|
| |
|
b.Ⅲ型/25°
|
| 呼び名 |
H
(mm) |
B
(mm) |
L
(mm) |
T1
(mm) |
T2
(mm) |
T3
(mm) |
T4
(mm) |
HW1
(mm) |
HW2
(mm) |
LW
(mm) |
参考質量
(kg) |
| 750 |
750 |
600 |
2000 |
102.5 |
100.0 |
109 |
100 |
525 |
225 |
525 |
630 |
| 1000 |
1000 |
750 |
100.0 |
100.0 |
109 |
100 |
525 |
475 |
525 |
820 |
| 1250 |
1250 |
900 |
105.5 |
103.5 |
130 |
130 |
525 |
725 |
525 |
1170 |
| 1500 |
1500 |
1050 |
100.0 |
100.0 |
130 |
130 |
525 |
975 |
525 |
1360 |
| 1750 |
1750 |
1200 |
108.2 |
105.3 |
160 |
160 |
625 |
1125 |
475 |
1850 |
| 2000 |
2000 |
1350 |
100.0 |
100.0 |
160 |
160 |
625 |
1375 |
475 |
2040 |
| 2250 |
2250 |
1500 |
109.7 |
106.3 |
190 |
190 |
625 |
1625 |
475 |
2650 |
| 2500 |
2500 |
1650 |
100.0 |
100.0 |
190 |
190 |
625 |
1875 |
475 |
2850 |
| 2750 |
2750 |
1800 |
110.8 |
107.1 |
220 |
220 |
875 |
1875 |
475 |
3570 |
| 3000 |
3000 |
1950 |
100.0 |
100.0 |
220 |
220 |
875 |
2125 |
475 |
3770 |
|
|
↑
|
|
